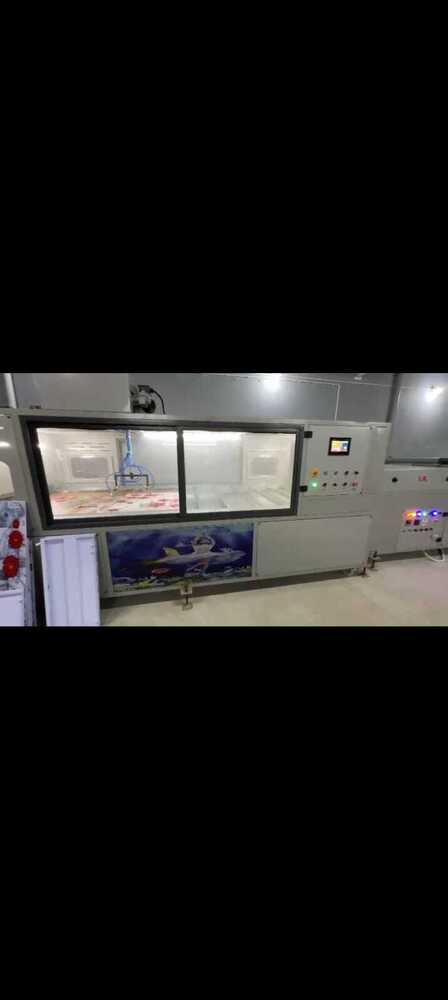

Lacquer Machine Jf 48

Name: Lacquer Machine Jf 48
Brand: JAYITA CAD CAM SYSTEMS
Price: 800000 INR
Availability: InStock

Price 800000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Lacquer Machine Jf 48 Specification

Feeding Type
Automatic belt feeding

Coating Type
Roller coating

Power Requirement
10 kW

Coating Format
Single/Double Side

Min. Sheet Area
300 x 300 mm

Coating Transfer Method
Reverse roller

Varnish Type
Oil & water-based compatible

Registration
Photoelectric alignment

Max. Coating Area
1200 mm width

Max. Sheet Area
1200 x 1200 mm

Machine Speed
Up to 30 m/min

Sheet Thickness
Up to 0.48 mm

Product Type
Lacquering machine

General Use
Industrial lacquer coating for metal and sheet surfaces

Material
Mild steel and aluminum

Type
Automatic coating line

Weight (kg)
Approx. 2200 kg

Coating Speed
6-30 m/min adjustable

Coating Head
Precision doctor roller head

Coating Width
1200 mm

Coating Material
Industrial lacquer/varnish

Computerized
Yes

Automatic
Fully automatic

Control System
PLC touch panel

Power Source
Electric

Power Consumption
10-12 kW

Heating System
Electric heating with temperature control

Drive Type
Servo motor driven

Voltage
380 V, 3 Phase, 50 Hz

Humidification System
Integrated humidity control

Glue Type
Lacquer/Varnish

Rewinder Type
Automatic rewinder

Unwinder Type
Pneumatic shaft unwinder

Rewinding Width
1200 mm max

Unwinding Width
1200 mm max

Dimension (L*W*H)
4200 x 1800 x 1800 mm

Feature
Dust-proof enclosed operation, PLC control, safety interlocks

Color
Grey with blue accents

Safety Features
Emergency stop, overload protection

Line Output
Up to 1500 sheets/hour

Cleaning System
Automatic cleaning system

Ambient Operating Temperature
5C - 40C

Application Industries
Packaging, metal printing, industrial sheet finishing

Noise Level
<72 dB

Service Support
Onsite and remote diagnostics available

Roller Material
High-grade stainless steel

Panel Type
Touch screen HMI

Installation Space Required
Approx. 22 m2

Lacquer Machine Jf 48 Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
East India

Lacquer Machine Jf 48 About

Grab the spotlight with the towering Lacquer Machine Jf 48-now on sale for high-demand industrial finishing! Engineered from venerable mild steel and polished aluminum, this fully automatic machine boasts a stellar output of up to 1,500 sheets/hour. The Jf 48 ensures dust-proof, enclosed precision with a doctor roller head and advanced PLC touch panel. Benefit from reverse roller transfer, automatic cleaning, and sophisticated safety features-all enclosed in a design tailored for packaging, metal printing, and sheet finishing. Elevate productivity and reliability in every sheet.

Superior Industrial Coating Versatility

The Lacquer Machine Jf 48 is expertly crafted for general and specific industrial applications, including packaging, metal printing, and advanced sheet finishing. Featuring automatic feeding, high-grade stainless steel rollers, and reverse roller coating, it delivers both single and double-side finishes. Extra features like a touch screen HMI, ambient temperature adaptability, integrated humidification, and a precision doctor roller head make it ideal for complex operations requiring polished, dust-free results.

Favorable Payment & Market Options

Take advantage of our lowest price guarantee for the Lacquer Machine Jf 48. We serve a broad exporter and trader market across India and internationally, ensuring cost-efficient goods transport and minimized expenditure. Flexible payment terms are available to suit various business needs. This machine is widely trusted by packaging, printing, and finishing professionals in domestic and main export markets, delivering enduring value and robust support.

FAQ's of Lacquer Machine Jf 48:

Q: How does the Lacquer Machine Jf 48 improve coating processes for industrial applications?

A: The Jf 48 offers precision automation with photoelectric alignment, reverse roller transfer, and adjustable coating speed, resulting in consistent, high-quality finishes for a variety of materials and industries.

Q: What are the benefits of its safety and cleaning features?

A: Equipped with emergency stop, overload protection, and an automatic cleaning system, the Jf 48 maximizes operator safety and minimizes maintenance downtime, ensuring reliable and efficient production.

Q: Where can the Lacquer Machine Jf 48 be installed and operated efficiently?

A: Designed for easy installation in industrial settings, the machine requires approximately 22 m2 of space and operates effectively within ambient temperatures ranging from 5C to 40C.

Q: What types of sheets and coating materials are compatible with this machine?

A: It handles sheet sizes from 300 x 300 mm up to 1200 x 1200 mm and supports oil- and water-based industrial lacquers or varnishes for maximum versatility.

Q: When is onsite or remote diagnostic service support available?

A: Professional service support is available both onsite and remotely, ensuring prompt assistance during installation, operation, or troubleshooting, enhancing uptime and peace of mind.
